Thermograph II

GENERAL DESCRIPTION
The Thermograph II is a precision temperature monitoring device that Plots temperature changes against time on a paper strip recording. It accepts up to 2 analog inputs. The inputs may be direct analog voltages or from thermistor probes. This device is accurate to within +/- .01% Degrees Fahrenheit/Celsius.

Download Thermograph II Datasheet in Adobe pdf.

Download free Adobe Acrobat reader here.

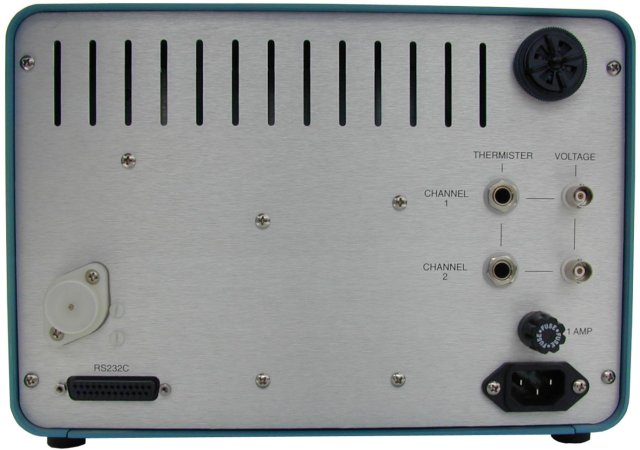

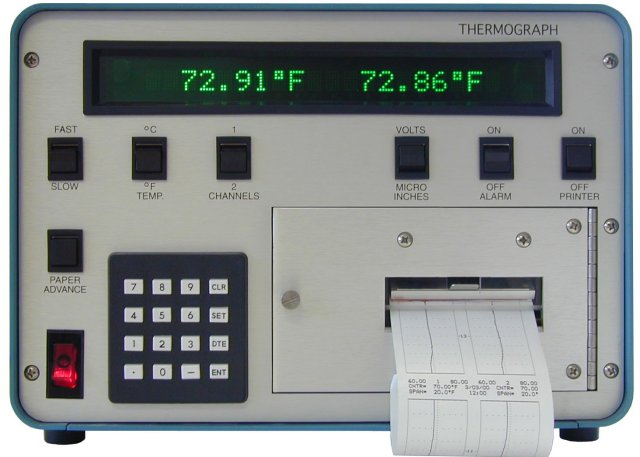

ThermographII: Front and back views shown here. Click here to enlarge photo Click here to enlarge photo
